Near Infrared Camera & Camera Adapter

camir1550space

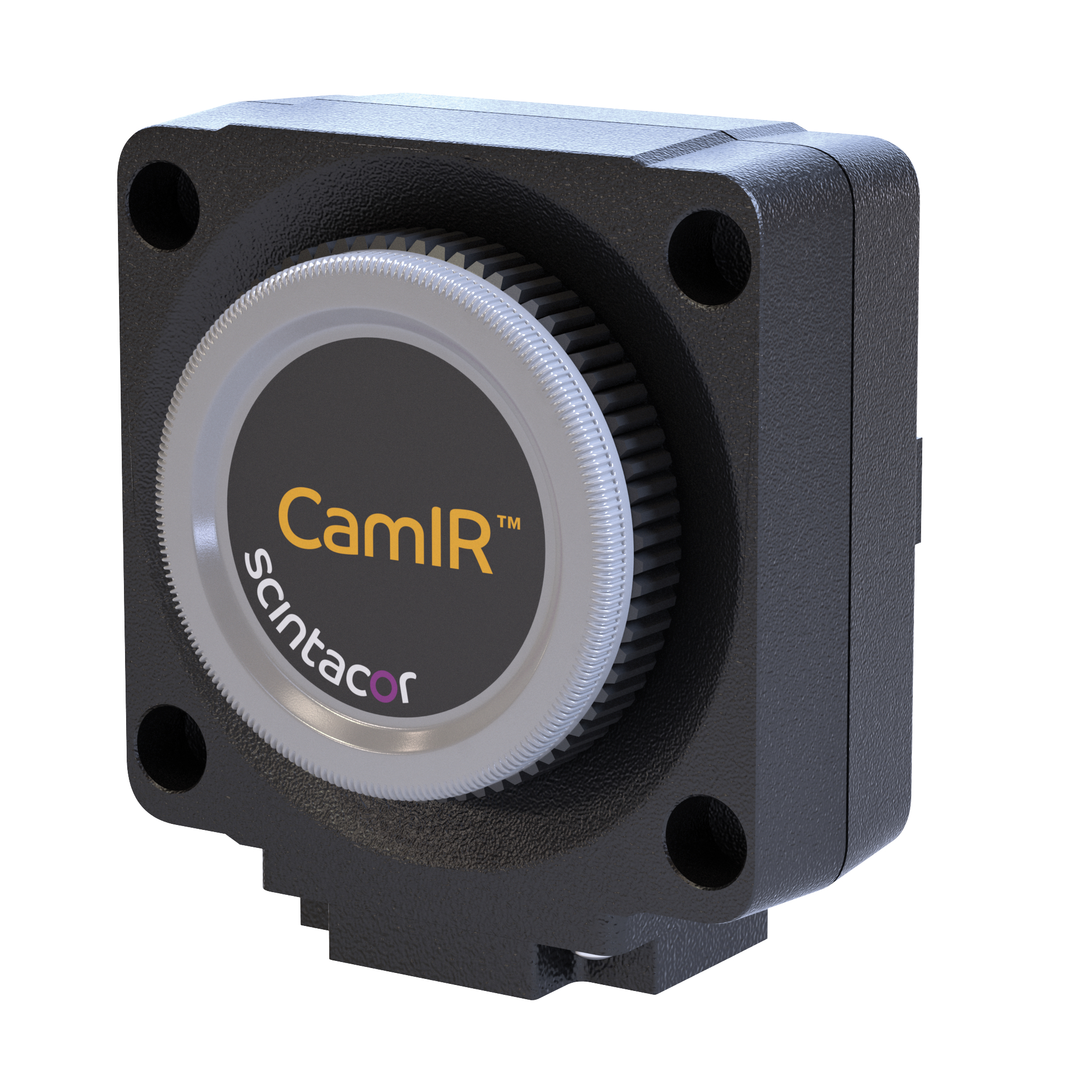

The CamIR 1550 near infrared (NIR) camera and camera adapter provide an affordable yet specialized camera for many NIR imaging applications, such as within the telecommunications industry, and are optimized for sensitivity around 1550 nm.

space

space

space

Applications:

  • Beam location and shape profiling
  • Laser alignment of positioning machines
  • Beam finding from communications band emitters
  • Imaging optical outputs of components such as optical fiber ends, amplifiers, routers and switchers, fiber gratings, splitters and couplers.
  • Device alignment, Material inspection
  • Machine vision, Covert surveillance

Benefits:

  • Extends the range of digital cameras into the NIR (1495-1595 nm)
  • Real-time imaging with no image lag or fade
  • High sensitivity to 0.2 ÁJ/cm2
  • Light weight portable system with optional hand-held display for use in remote locations
  • 3 hours operation on a single battery charge (with hand-held monitor)
  • Use with or without a lens depending on the application
  • High resolution, low distortion and good uniformity gives superior image quality
  • High quality AR coated optics used throughout
  • CamIR Adapter works with selected digital cameras

space

Hand-held Monitor: Available for this camera on special order, it incorporates a 2.5" LCD TFT display with 112k pixels giving high quality greyscale images from the camera.  A table showing the technical specifications of the hand-held monitor is available.

space

CamIR adapter: Enables users to adapt a standard digital camera to image in the NIR range 1495 -1595 nm.  The module is inserted between a large format lens and a digital camera to give an instant imaging system that extends sensitivity into the telecom wavelength bands.

space

camir1550bcamir1550acamiradapter

NIR Camera Adapter

Handheld Viewer

Waterproof option

Download one of these brochures as a PDF file:

lit1aRequest
Literature

pdf3aNIR Camera brochure

pdf1a1NIR Camera Adapter brochure

UV TargetsVIS-NIR TargetsNIR Targets

Back to Product Selection Page
